Product electronic sample: https://www.yunzhan365.com/bookcase/sbhc/

Constant source conical mobile crushing station parameters:

Model	Vibrating screen model	Cone broken model	Belt machine specifications	Tire configuration	Generator	Processing capacity（t）	Power （kw）	Dimensions （mm）	Weight （t）
3YPY900	3YZS1548	PYB900	B500*7M	Combined with two axes	Optional	50-200	70-80	1300028006400	43
3YPY1300	3YZS1848	PYB1300	B650*7M	Combined with two axes	Optional	70-300	99-134	1300030006700	47
3YPY1860	3YZS1860	PF1600	B650*8M	Combined three axes	Optional	120-400	212-220	1400030006700	53
3YPY2100	3YZS2160	HP220	B800*8M	Combined three axes	Optional	140-450	258-270	1400032006700	58

Note: Parameters are subject to change without prior notice, please contact us.

Introduction to Conical Mobile Crushing Station:

The cone-shaped mobile crushing station is also called the tire-type cone moving crushing station and the cone is broken. The mobile breaking produced by Phoenix is ??mainly used for material processing such as building materials, hydropower, metallurgy, chemical industry, etc., which are often required for relocation operations, especially for highways and railways. Operation of fluid stone materials such as hydropower projects. Users can use a variety of configurations depending on the type of processing materials, size and finished material requirements. The tire-type cone moving crushing station is especially suitable for small crushing sites, suitable for construction waste disposal and construction waste.

The principle of the cone moving crushing station:

The working principle of the cone-shaped mobile crushing station is that when the mobile breaks and moves, the traction frame is provided by the trailer to support the walking by the tire of the frame itself. When installing, rely on external power, control the hydraulic cylinder and other actions through the hydraulic electronic control system to complete the equipment installation. When working, rely on external power to drive the main machine and auxiliary equipment motor to drive the equipment to work. After the material is broken or sieved from the silo or belt conveyor into the cone crusher, it is discharged through the belt conveyor.

Cone moving crushing station features:

1. In-vehicle installation with integrated belt conveyor and crusher

2, steering the traction shaft, easy to transport roads and site depth

3, car installation support, equipment venue is fast and convenient

4, vehicle-mounted motor and control box integration

5. High-performance cone crusher combined with vibrating screen

6. High-performance vibrating screen and belt conveyor integrated with crusher

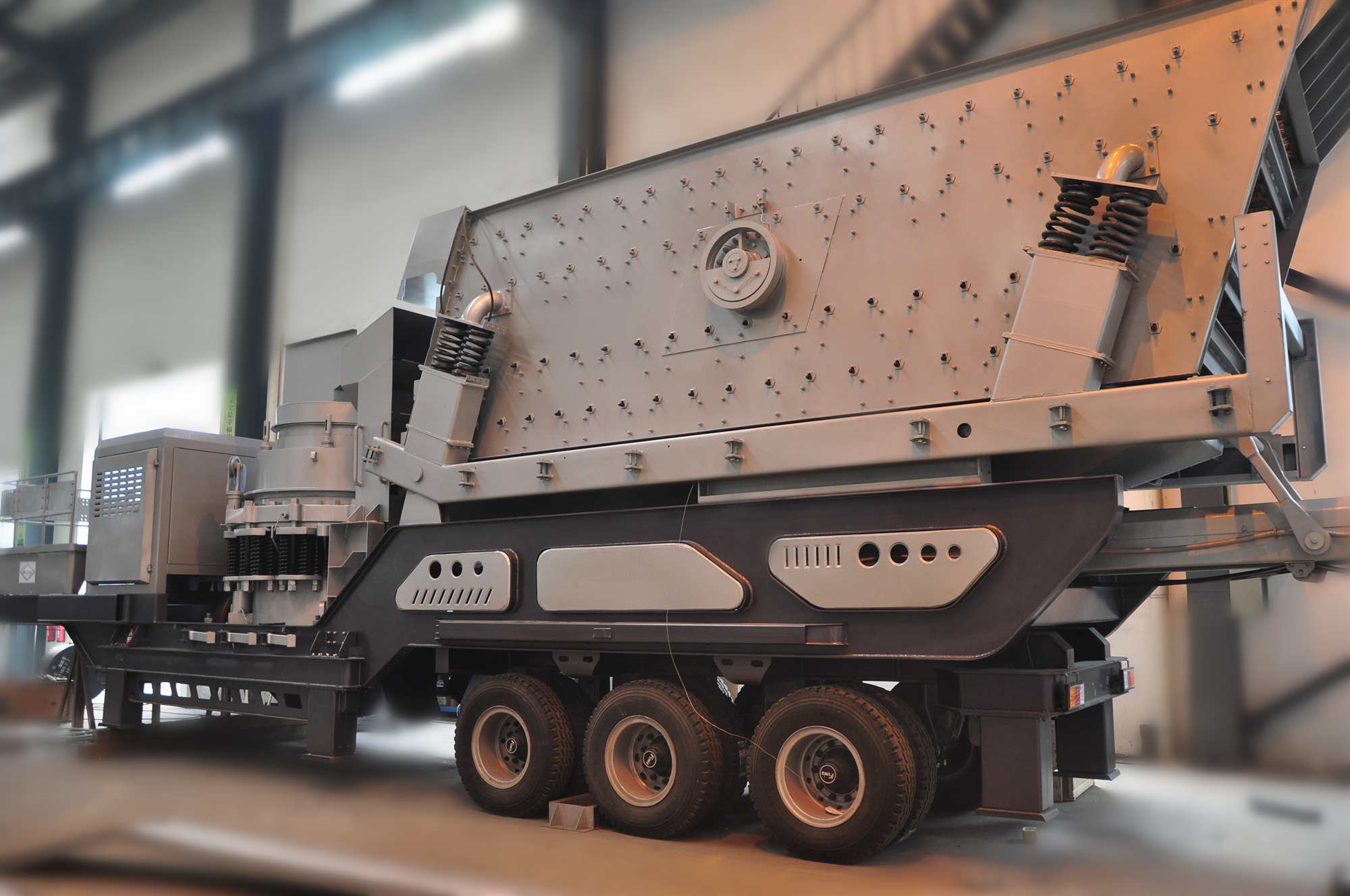

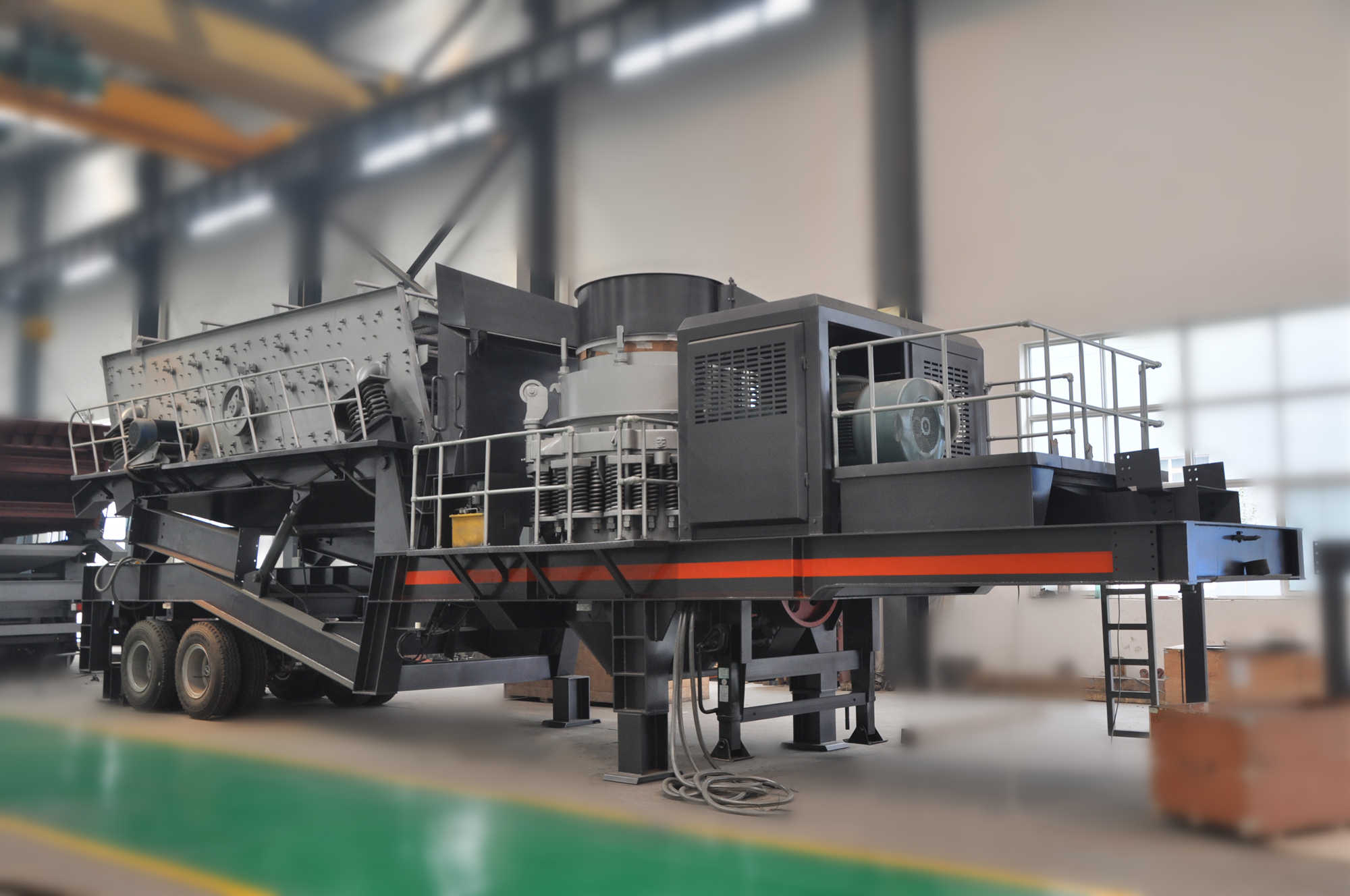

Cone moving crusher picture:
